Embargoed until: May 02, 2023 15:00 CESTThe study on which this press release is based has not yet been published. This article is embargoed and intended to provide advance information to certain media and press representatives only. The URL of this page may not be distributed or shared on the Internet until the embargo has lifted.

A novel way to make frequency-dependent squeezed light

AEI team shows first time generation of frequency dependent squeezed light from a detuned optical parametric oscillator

May 02, 2022

Quantum mechanics fundamentally limits highest precision force measurements, such as those employed in gravitational-wave detectors. The resulting random noise is a combination of shot noise and quantum back-action noise and defines the “standard quantum limit” of interferometry. This limit can be overcome with frequency-dependent squeezed light. While gravitational-wave detectors have been using “simple” squeezed light for more than a decade, they are only now starting to implement frequency-dependent squeezing. The current implementation uses squeezed light sources and filter cavities and cannot entirely cancel quantum back-action noise. Now, a team of AEI researchers has demonstrated for the first time a new method of generating frequency-dependent squeezed light. It is based on detuning the optical parametric oscillator in a squeezed light source, and can entirely evade back-action noise. The novel method is unlikely to replace the combination of squeezers and filter cavities in gravitational-wave detectors. It could, however, be a useful add-on for third-generation detectors such as the Einstein Telescope and might also have applications in other opto-mechanical precision experiments and coherent quantum noise cancellation.

Paper abstract

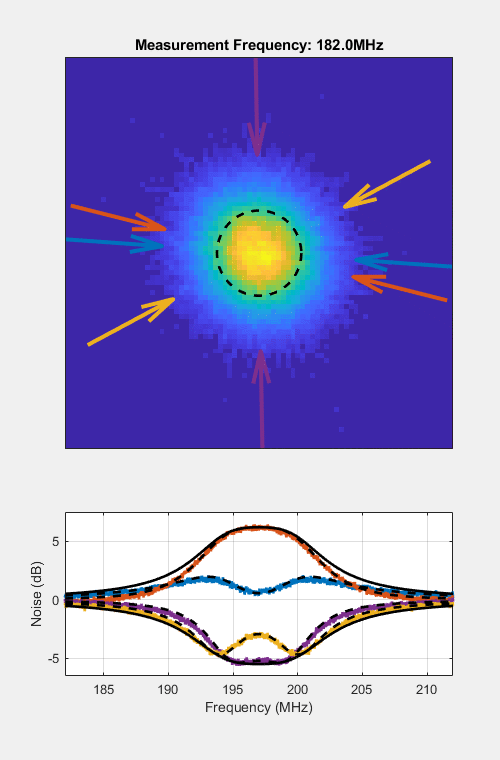

Top row: Tomographically reconstructed Wigner functions. The dashed circle indicates the shot noise levels as a reference. Bottom row: The projections of the Wigner function are measured at four different detection angles shown by the colored traces (blue: ψ=-153°, red: ψ=-88°, yellow: ψ=-15°, violet ψ=-6°). The black dashed traces are simulations of σ ̃11(ψ − ψ0) for these four specific angles. The solid black traces show simulations when the detection angle is aligned to the maximum squeezing/anti-squeezing axis at each measurement frequency σ ̃11(ψω) and σ ̃22(ψω). — Top row: Tomographically reconstructed Wigner functions. The dashed circle indicates the shot noise levels as a reference. Bottom row: The projections of the Wigner function are measured at four different detection angles shown by the colored traces (blue: ψ=-153°, red: ψ=-88°, yellow: ψ=-15°, violet ψ=-6°). The black dashed traces are simulations of σ ̃₁₁(ψ − ψ0) for these four specific angles. The solid black traces show simulations when the detection angle is aligned to the maximum squeezing/anti-squeezing axis at each measurement frequency σ ̃₁₁(ψ_ω) and σ ̃₂₂(ψ_ω).

Top row: Tomographically reconstructed Wigner functions. The dashed circle indicates the shot noise levels as a reference. Bottom row: The projections of the Wigner function are measured at four different detection angles shown by the colored traces (blue: ψ=-153°, red: ψ=-88°, yellow: ψ=-15°, violet ψ=-6°). The black dashed traces are simulations of σ ̃₁₁(ψ − ψ0) for these four specific angles. The solid black traces show simulations when the detection angle is aligned to the maximum squeezing/anti-squeezing axis at each measurement frequency σ ̃₁₁(ψ_ω) and σ ̃₂₂(ψ_ω).

Frequency-dependent squeezing is a promising technique to overcome the standard quantum limit in opto-mechanical force measurements, e.g. gravitational wave detectors. For the first time, we show that frequency-dependent squeezing can be produced by detuning an optical parametric oscillator from resonance. Its frequency-dependent Wigner function is reconstructed quantum-tomographically and exhibits a rotation by 39°, along which the noise is reduced by up to 5.5 dB. Our setup is suitable for realizing effective negative-mass oscillators required for coherent quantum noise cancellation.
